Description

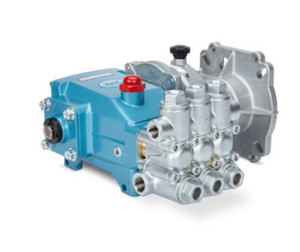

CAT PUMPS 5CP6120CSSG1, 5CP PLUNGER PUMP WITH GEARBOX
Direct Drive, Gear Reduction Plunger Pumpsfrom Cat Pumps are designed to bolt directly to gas or diesel engines. Gear boxes allow pumps to run at slower speeds which extends pump life. Brass manifolds are standard. 316SS also available. Rated to 140° F. but high temperature seals to 175° F. are available in most models. Ports are 1/2" inlet x 3/8" outlet.
SPECIFICATIONS:
| Max Flow | 7.2 gpm / 27 lpm |
| Max Pressure | 1500 |
| Inlet Port Size | 1/2" NPT(F) |
| Discharge Port Size | 3/8" NPT(F) |
| RPM | 3450 |
| Drive Type(s) | Direct, Gearbox |
| Material | Brass |
Shaft Size: 1"
Extra Information
Brand:
CAT PUMPS
Weight:
30.00 LBS
